What Is a Bolt Action Pen? How It Works, Pros, Cons & Refills (2026)

bolt action pen
0 comments

A bolt action pen is a retractable pen that uses a small side-mounted bolt or lever to extend and lock the writing tip. Move the bolt through its track and the refill comes out; reverse the motion and the tip retracts. The mechanism is quick, secure, and unusually satisfying to operate, which is why it has become a fixture in everyday carry.

Quick answer: Choose a bolt action pen if you want one-handed deployment, a positive mechanical lock, and a durable refillable body. Before buying, check the exact refill family, pen length, body material, clip position, and whether the bolt path suits your writing hand. “Parker-style G2” and “Pilot G2” are different refill formats, even though both names include G2.

Shop this guide

Three in-stock bolt action pens that illustrate the size, material, and refill choices explained below.

What is a bolt action pen?

A bolt action pen replaces the familiar top clicker or twist mechanism with a guided side control. The user moves a small bolt along a machined track, usually with a short turn into a notch that holds the tip in the writing position. The name comes from the motion and appearance of a bolt-action firearm, but the pen mechanism only advances and retracts an ink refill.

Most examples in the EDC category pair that mechanism with a machined metal body, a pocket clip, and a replaceable refill. The result is a writing tool designed to ride beside a knife, flashlight, wallet, or notebook instead of living in a desk cup.

How does a bolt action pen work?

The exact internal design varies by maker, but the basic sequence is straightforward:

  1. Your thumb moves the bolt. The bolt or lever travels along a slot in the barrel or mechanism housing.
  2. The internal carrier pushes the refill forward. This compresses a spring near the nose of the pen and extends the writing tip.
  3. The track holds the bolt in its deployed position. Moving the bolt sideways into a notch keeps the refill extended while you write.
  4. Releasing the bolt retracts the tip. Move the bolt out of its notch and the spring helps return the refill to the protected position.

That guided motion is the defining feature. Track shapes, spring tension, bolt direction, and internal parts differ, so two bolt action pens can feel noticeably different even when they use the same refill.

Bolt action vs. click, twist, and capped pens

Mechanism How it deploys Main advantage Main tradeoff
Bolt action Side bolt follows a track and locks into a notch. Positive, tactile one-handed operation. The bolt location and path may favor one hand or grip.
Click Top button cycles a cam mechanism. Fast, familiar, and easy to operate. The top button can be pressed unintentionally in a crowded pocket or bag.
Twist Part of the barrel rotates to extend the refill. Low-profile exterior with no protruding button. Usually slower and more likely to require two hands.
Capped A removable cap protects the tip. Excellent tip protection and a clean body shape. The cap adds a separate step and can be misplaced.

If you are comparing mechanisms across the whole category, start with our guide to choosing an EDC pen. This article goes deeper on the bolt action itself.

Why carry a bolt action pen?

One-handed deployment

A well-positioned bolt lets you extend or retract the refill with the thumb of your writing hand. That is useful when the other hand is holding a notebook, package, form, or phone.

A positive locked position

The bolt settles into a visible, physical notch when deployed. You can see and feel whether the tip is extended instead of relying only on the sound of an internal click.

Durable, serviceable construction

Many EDC bolt action pens use metal bodies and replaceable refills. The mechanism does not make every model indestructible, but it gives manufacturers a simple, manually operated platform that can be built without a plastic top clicker.

Tactile appeal

The guided motion provides more feedback than a basic click pen. Some owners enjoy cycling the mechanism when thinking, but the important test is whether the pen is comfortable and writes well—not whether the bolt is entertaining for the first five minutes.

What are the drawbacks?

  • Handedness matters. A bolt path that feels natural in the right hand can feel awkward in the left. Look for reversible clips or left-handed versions when offered.
  • The bolt can meet your grip. Depending on its position and how you rotate the pen, the control may touch the index finger or thumb while writing.
  • Machined metal adds cost and sometimes weight. Copper and brass feel substantially heavier than titanium or aluminum.
  • The mechanism does not determine ink quality. A satisfying action cannot rescue a refill you dislike.
  • Compatibility is model-specific. A refill that fits one length of a pen may not fit another version of the same model.

How to choose a bolt action pen

1. Start with the refill, not the bolt

Decide whether you prefer gel, traditional ballpoint, hybrid ballpoint, rollerball, or pressurized ink. Then choose a pen built for that refill family. Our pen refill guide explains the major formats and the confusing names in more detail.

Do not confuse Parker-style G2 with Pilot G2. Parker-style G2 is a short, standardized ballpoint-shaped format used by many machined pens. Pilot G2 is a longer gel refill. They are not interchangeable unless the pen maker specifically provides an adjustment or adapter.

The Tactile Turn Bolt Action Pen Short - Titanium, for example, ships with a Schmidt EasyFlow 9000 and supports the maker’s listed short-format alternatives. The standard-length copper version ships with a Pilot G2. Same general pen family, different length and refill ecosystem.

2. Match the length and diameter to your hand

Short pens disappear more easily in a pocket, but a very short body can feel cramped during long writing sessions. Full-length pens offer more room to shift your grip. Diameter matters too: slim pens suit a tight grip, while wider bodies may feel better for large hands or writers who squeeze hard.

3. Choose the body material deliberately

  • Titanium: corrosion resistant and lighter than copper or brass, with a premium machined feel.
  • Aluminum: light, practical, and often less expensive than titanium.
  • Stainless steel: tough and usually more affordable, but heavier than titanium or aluminum.
  • Copper or brass: dense, warm-toned metals that develop patina with handling.

For a broader comparison, see our EDC materials guide.

4. Check bolt direction, clip placement, and handedness

Imagine drawing the pen, moving the bolt, and settling into your normal writing grip. Does your thumb naturally follow the track? Does the bolt land beneath a finger? Is the clip reversible? If a manufacturer offers separate right- and left-handed mechanisms, select the correct version rather than assuming the difference is cosmetic.

5. Treat the clip as part of the mechanism

A deep-carry clip hides more of the pen below the pocket edge, while a higher-riding clip makes it easier to grab. Check whether the clip is replaceable or reversible and whether its position interferes with the bolt.

Three in-stock bolt action pens compared

Pen Live specifications Included refill Best fit

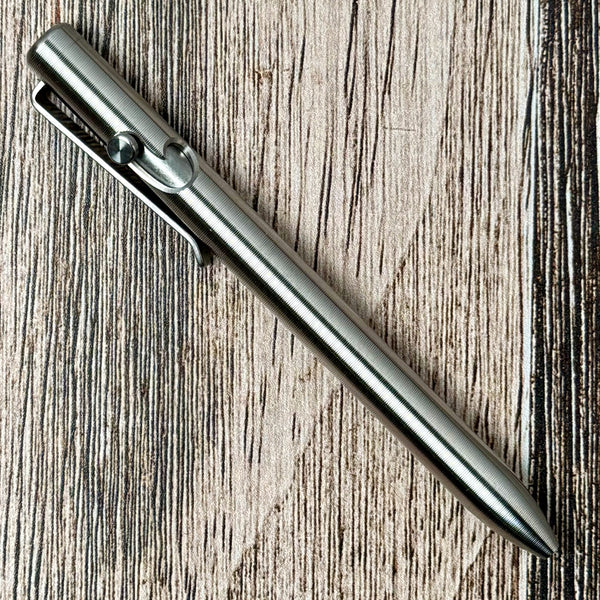

Tactile Turn Bolt Action Pen Short - Titanium Titanium body; 5.13-inch listed length; 0.43-inch diameter Schmidt EasyFlow 9000 medium A compact, corrosion-resistant machined pen with Parker-style refill options listed by the maker.

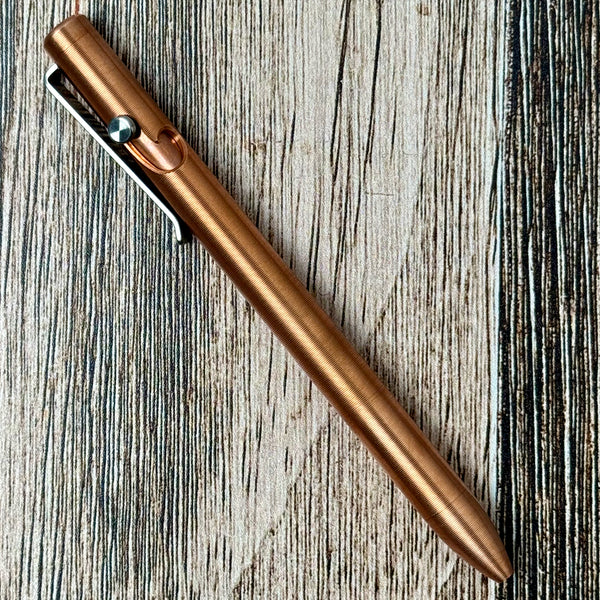

Tactile Turn Bolt Action Pen - Copper Copper body; 5.63-inch listed length; 0.43-inch diameter Pilot G2 0.7 mm A full-length pen for writers who want more heft, Pilot G2 compatibility, and a developing patina.

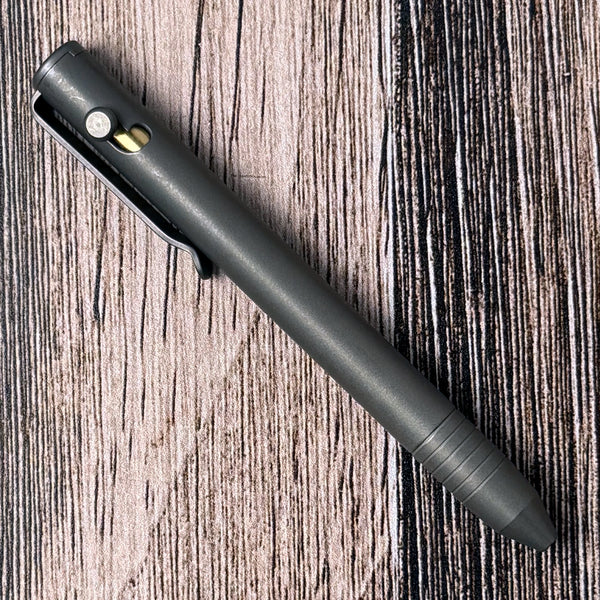

Big Idea Design Base Line Bolt Action Pen Ti - Stonewash Titanium body; 4.59-inch listed length; deep-carry clip Schmidt P900 ballpoint A shorter stonewashed option centered on Parker-style refill compatibility.

These are examples, not a universal ranking. The best choice depends on your refill preference, hand size, desired weight, and how the bolt feels in your writing hand. You can also browse the current pens collection for other mechanisms and materials.

How to replace the refill

  1. Retract the tip. This reduces spring tension and protects the point while the pen is opened.
  2. Open the pen at the maker’s intended joint. Depending on the design, the nose cone or body section may unscrew.
  3. Keep track of the spring and any spacer. Note their orientation before removing the old refill.
  4. Install an explicitly compatible refill. Match the format and follow any trimming or adapter instructions supplied by the pen maker.
  5. Reassemble without forcing the threads. Test the bolt several times and confirm the tip fully extends and retracts.

If the tip will not retract, the refill rattles, or the bolt will not enter its notch after a refill change, stop and recheck the refill length, spring placement, and any required adapter. Do not force the mechanism.

Basic care and troubleshooting

Symptom Likely cause What to check
Bolt feels rough Pocket lint or debris in the exposed track Retract the tip and wipe the track with a clean, dry cloth. Follow the maker’s care instructions before applying any lubricant.
Tip rattles while writing Refill diameter or length does not match the pen Confirm the exact refill model, spring, spacer, and any maker-approved adapter.
Tip does not extend fully Incorrect refill, misplaced spring, or incomplete reassembly Open the pen carefully and compare the installed parts with the maker’s instructions.
Ink skips Refill issue rather than bolt mechanism Test on clean paper, inspect the tip, and replace the refill if needed.
Copper body darkens Normal surface patina from handling and exposure Leave it to develop or clean it only with a method approved for the pen’s material and finish.

Frequently asked questions

Are bolt action pens worth it?

They are worth considering if you value a refillable metal body, one-handed deployment, and a tactile mechanical action. They are a poor value if you only want the lowest-cost way to put ink on paper or if the side bolt interferes with your grip.

Can a bolt action pen deploy in your pocket?

The guided track and locking notch make accidental movement less direct than pressing an exposed top clicker, but no retractable design is impossible to activate. Carry the pen clipped securely, confirm the tip is retracted, and avoid placing it loose in a tightly packed pocket or bag.

Are bolt action pens good for left-handed writers?

They can be, but bolt direction and clip placement matter. Look for a left-handed version, reversible mechanism, or return policy that lets you confirm the action and grip work for your hand.

Do bolt action pens use special ink?

Not inherently. The mechanism moves a removable refill; the pen’s internal dimensions determine which refill formats fit. Some use Parker-style G2 refills, some use Pilot G2, and others support pressurized or multiple formats.

What is the difference between Parker-style G2 and Pilot G2?

They are different refill shapes and lengths from different product families. Parker-style G2 is the shorter ISO-style ballpoint format common in machined pens. Pilot G2 is a longer gel refill. Always use the exact compatibility list for your pen.

Can a bolt action pen write upside down?

The bolt mechanism only deploys the refill; it does not pressurize the ink. Upside-down or all-weather performance depends on the installed refill. Choose a maker-approved pressurized refill if that capability matters.

Sources and manufacturer references

Bottom line

A bolt action pen is a retractable pen with a side-mounted control that guides the refill into a locked writing position. Its real advantages are one-handed operation, clear mechanical feedback, and the durable machined bodies common in the EDC category. Choose the refill first, then match the pen’s length, diameter, material, clip, and bolt direction to your hand. A good mechanism is satisfying; the right fit and refill are what make the pen useful every day.
