A modern pocket knife is a compact mechanical system. The blade rotates around a pivot, an opening feature starts that rotation, a lock or backspring controls the blade, and the handle structure keeps everything aligned. Learning the names of those parts makes product descriptions easier to understand—and helps you recognize what affects cutting, carry, maintenance, and safety.
Shop this guide
These in-stock folders show four distinct combinations of blade, opening, lock, handle, and carry hardware.

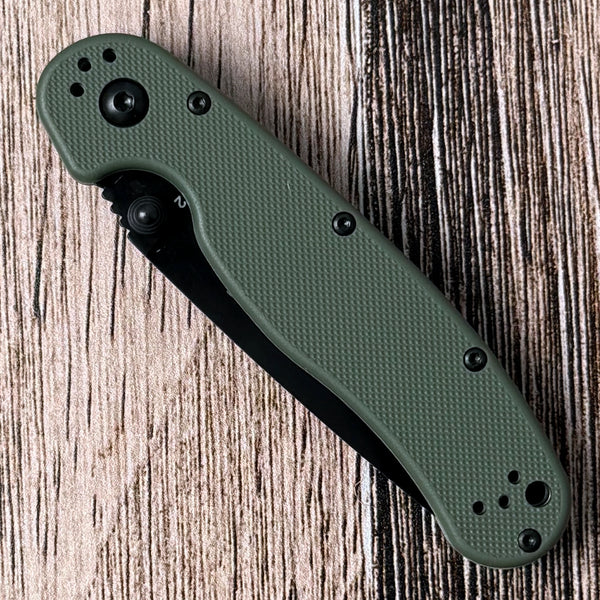

Ontario RAT II
A clear example of modern folder anatomy: dual thumb studs, a liner lock, a lanyard hole, and a four-position pocket clip.
View current price

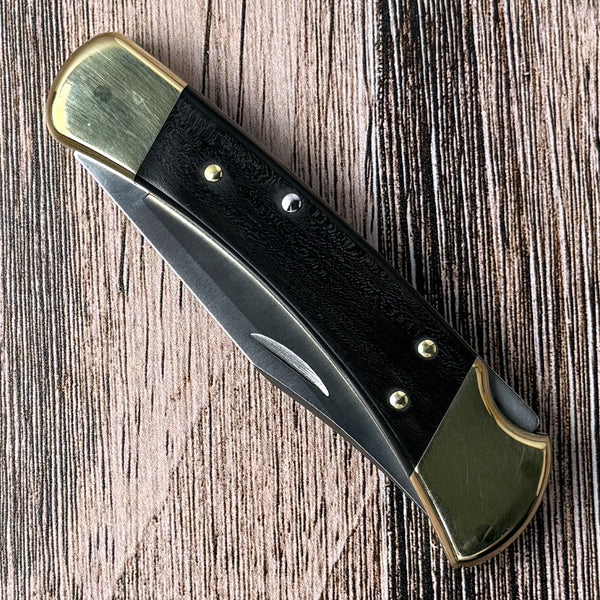

Buck 110 Hunter
A traditional counterpoint with a lockback, ebony handle scales, brass bolsters, and a belt sheath instead of a pocket clip.
View current price

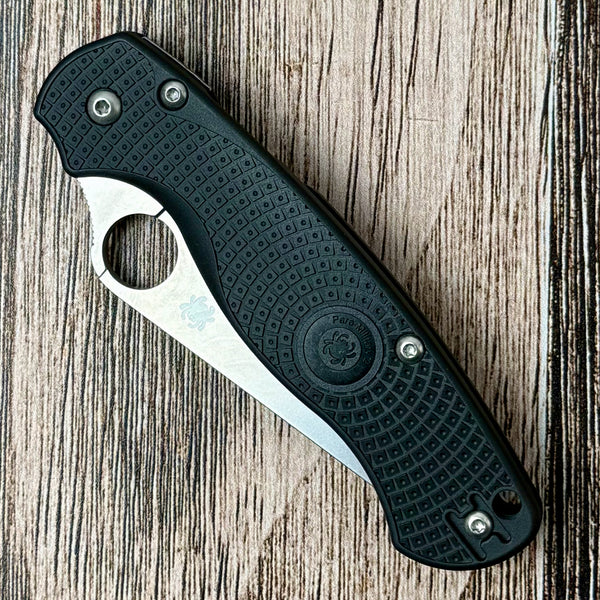

Spyderco Para Military 2 Compression Lock Knife
Useful for seeing how a round opening hole, Compression Lock, four-position clip, and lanyard hole fit into one design.
View current price

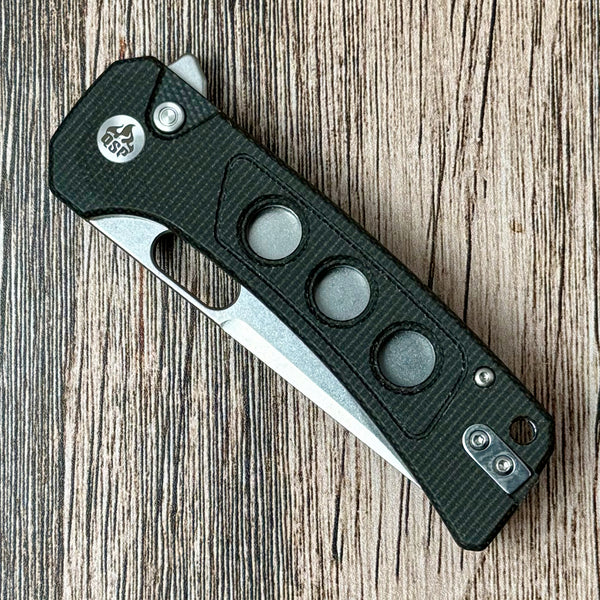

QSP Knife Unicorn Button Lock Knife
A contemporary button-lock example with micarta scales, a pocket clip, a lanyard hole, and an extended tang.
View current pricePocket knife anatomy at a glance
Folding knives vary, but most parts fall into four systems: the blade does the cutting, the pivot and opening parts move the blade, the handle and hardware support the assembly, and the lock or backspring controls the blade in use. Carry features such as a clip or lanyard hole sit outside those systems but can strongly affect everyday convenience.
| Part | What it is | Why it matters |
|---|---|---|
| Blade | The steel cutting component that folds into the handle. | Its shape, steel, grind, thickness, and edge determine how it cuts and how you maintain it. |
| Pivot | The joint where the blade attaches to and rotates through the handle. | It affects opening action, blade alignment, and lateral play. |
| Lock or backspring | The mechanism that controls the blade in the open position; some designs also provide closing bias. | It changes how the knife opens, closes, and should be handled. |
| Liners, frame, and scales | The structural and grip components around the folded blade. | They influence rigidity, weight, comfort, and maintenance access. |
| Pocket clip and lanyard hole | External attachment points for pocket carry or a lanyard. | They affect carry orientation, access, retention, and how much knife shows above the pocket. |
Parts of the blade
Point and tip
The point is where the sharpened edge and spine meet. The tip is the forward area around that point. The exact geometry depends on the blade profile: a clip point, drop point, sheepsfoot, and tanto place material differently near the tip. Our pocket knife blade shapes guide explains what those profiles are designed to do.
Edge, bevel, and grind
The edge is the sharpened cutting line. The edge bevel is the narrow ground surface immediately behind it. Farther up the blade, the primary grind thins the blade from its full stock thickness toward the edge. These terms are related, but they are not interchangeable.
A plain or serrated edge changes how the cutting line engages material, while a flat, hollow, saber, Scandi, or convex grind changes the blade geometry behind that edge. See our guides to plain vs. serrated edges and pocket knife blade grinds for those choices.
Spine, flat, and swedge
The spine is the unsharpened back of the blade, opposite the edge. The flat is the broad, unground face that may carry the maker and steel markings. A swedge is a tapered or beveled section near the spine; it reduces material near the point but is usually not sharpened.
Ricasso, choil, and jimping
The ricasso is the unsharpened portion of the blade between the cutting geometry and the handle. A small sharpening choil is a notch that gives the abrasive a clean endpoint at the heel of the edge. A larger finger choil is shaped as a grip position. Do not assume every notch is intended for a finger.
Jimping is machined texturing intended to add traction. It often appears on the spine, thumb ramp, flipper tab, or lock surface. Its usefulness depends on placement and how it feels in your grip, not simply whether it exists.
Tang
On a folding knife, the tang is the rear portion of the blade around the pivot. It interacts with the lock, detent, backspring, or stop surface. This differs from “full tang” terminology on fixed blades, where the tang describes how far the blade steel extends through the handle.
Blade steel is another separate variable: it affects edge retention, toughness, corrosion resistance, and sharpening behavior rather than the names of the parts themselves. Use the pocket knife steel guide when comparing alloys.
The opening and pivot system
Opening feature
A thumb stud, opening hole, flipper tab, thumb disk, or nail nick gives you a place to apply force to the blade. The feature does not necessarily tell you whether a knife is manual or assisted; it only describes the interface you use. Our opening mechanisms guide compares the common systems in detail.
For a live example, the Ontario RAT II uses dual thumb studs, phosphor-bronze washers, a liner lock, and a four-position pocket clip. That combination makes it easy to identify the opening, pivot, lock, and carry systems on one modern folder.
Pivot pin and pivot screw
The blade rotates around a pivot pin or barrel. One or more pivot screws secure that assembly. Pivot tension can influence action and blade play, but tightening a screw is not a universal fix: contamination, wear, damaged hardware, or uneven assembly can produce similar symptoms.
Washers, bearings, and bushings
Many folders place a low-friction interface on each side of the blade tang. That may be a washer, a caged-bearing assembly, or a bushing-based pivot. The design affects feel and maintenance, but smooth action still depends on alignment, tolerances, cleanliness, and appropriate lubrication—not the part name alone.
Detent and stop pin
On many liner-lock and frame-lock knives, a small detent ball seats in a hole in the blade tang to help retain the blade when closed. As you begin opening the blade, overcoming that detent creates the initial resistance you feel. A stop pin or another structural stop surface limits blade rotation and provides a contact point when the knife is fully open.
The handle and its structure
Handle scales
Scales are the outer grip panels. They may be structural or attached over liners or a frame. Material affects texture, weight, temperature feel, appearance, and durability, but “scale” describes the part—not a specific material. The EDC materials guide compares common handle and gear materials.
Liners, frame, and lockbar
Liners are flat structural plates inside the handle, usually beneath the scales. In a liner lock, a spring-like section of one liner moves behind the blade tang to hold the blade open. In a frame lock, part of the handle frame itself serves as the lockbar. Some lightweight designs use little or no full-length metal liner, so a visible scale does not prove what is underneath it.
Bolsters, backspacers, and standoffs
Bolsters reinforce or decorate the front of some handles near the pivot. A backspacer fills part of the channel between the handle sides along the spine. Open-backed knives often use standoffs or barrel spacers instead, leaving more of the interior exposed.
Body screws and pins
Screws, pins, and rivets hold the handle assembly together. Screw construction can allow service access, while pinned construction is commonly intended to remain assembled. Before taking a knife apart, check the manufacturer’s instructions and warranty terms; disassembly is not required for routine exterior cleaning.
Locks, backsprings, and blade control
A lock is meant to hold a folding blade in the open position. Liner locks, frame locks, lockbacks, Compression Locks, button locks, and crossbar-style locks place their controls in different locations and transfer force through different parts. The name of a lock describes its mechanism—not an automatic guarantee of quality or safety.
Not every pocket knife locks. A slipjoint typically uses a backspring to resist opening and closing without mechanically locking the blade open. That distinction matters when reading a specification sheet and when choosing a knife for a task. Compare the systems in our knife lock types guide.
Carry parts: clip, clip holes, lanyard hole, and butt
The pocket clip retains the folded knife at the edge of a pocket. Its mounting position determines tip-up or tip-down orientation and left- or right-side carry options. “Deep carry” refers to how much of the handle remains visible above the pocket, not to a different locking or opening mechanism.
Clip holes or mounting points show where the clip can be installed. A four-position clip supports all four common combinations; a fixed clip may support only one. The pocket clip guide covers orientation and positioning, while the pocket knife size guide explains how the whole package carries.
The lanyard hole accepts cord or another attachment. The butt is simply the back end of the handle; it may contain a lanyard hole, clip screws, a backspacer, or exposed frame.
How these parts work together: four examples
No single layout is “complete.” A design includes the parts needed for its intended opening, locking, grip, and carry system. These current examples make the differences concrete without treating one layout as universally best.
| Knife | Opening | Blade control | Handle and carry details |
|---|---|---|---|
| Ontario RAT II | Manual, dual thumb studs | Liner lock | Glass-reinforced nylon handle, four-way clip, lanyard hole |
| Buck 110 Hunter | Manual | Lockback | Ebony scales, brass bolsters, no pocket clip, leather belt sheath |
| Spyderco Para Military 2 Compression Lock Knife | Round opening hole | Compression Lock | Textured handle, four-position clip, lanyard hole |
| QSP Knife Unicorn Button Lock Knife | Thumb pull and extended tang | Button lock | Micarta scales, pocket clip, lanyard hole |
Why anatomy matters when buying a pocket knife
Once you know the parts, a product page becomes easier to decode. Start with the job the knife needs to do, then connect each specification to a real consequence:
- Blade shape, grind, edge, and steel describe the cutting system.
- Opening feature, pivot, and detent shape how deployment feels.
- Lock or backspring tells you how the blade is controlled when open.
- Scales, liners, frame, and spacers describe the handle’s structure and grip.
- Clip position, weight, and closed length describe how the knife carries.
That is more useful than choosing by one feature in isolation. A premium blade steel does not correct an uncomfortable handle, and a smooth pivot does not make an unsuitable blade shape right for your task. If you are starting from scratch, use our first EDC knife guide to put the parts into a buying decision.
What pocket knife parts need maintenance?
The edge, pivot area, lock interface, and exposed hardware deserve the most attention. Most routine care is simple: remove debris, dry the knife, protect appropriate steel surfaces, use lubricant sparingly where the maker recommends it, and sharpen the edge with a suitable method.
| Symptom | Parts to inspect | Reasonable next step |
|---|---|---|
| Gritty or slow action | Pivot area, washers or bearings, blade channel | Remove visible debris and follow the maker’s cleaning and lubrication guidance. |
| Lateral blade play | Pivot screw, pivot hardware, liners or frame | Stop and inspect; looseness, wear, or damage can have similar symptoms. |
| Lock does not engage fully | Lockbar, blade tang, pivot, stop surface | Stop using the knife and seek qualified service if cleaning does not reveal an obvious obstruction. |
| Loose clip | Clip screws and mounting holes | Use the correct tool and follow manufacturer guidance; damaged threads need more than extra torque. |
| Dull or damaged edge | Edge bevel and apex | Match the sharpening method to the edge type and damage level. |
For a complete routine, see how to clean and maintain a pocket knife. When the cutting edge is the issue, use our pocket knife sharpening guide.
Frequently asked questions
What is the pivot on a pocket knife?
The pivot is the joint where the blade attaches to and rotates through the handle. It usually includes a pin or barrel, screws, and a low-friction interface such as washers, bearings, or a bushing.
What keeps a folding knife closed?
It depends on the design. Many liner and frame locks use a detent ball and matching hole in the blade tang. Slipjoints use spring tension. Other lock systems can create their own closing bias. Do not assume every folder uses the same mechanism.
What is the difference between liners and scales?
Liners are internal structural plates. Scales are the outer grip panels. Some knives use both, while other designs use a structural handle or frame with no separate full-length liner.
What is a choil on a pocket knife?
A sharpening choil is a small notch at the heel of the edge that provides clearance for sharpening. A finger choil is larger and shaped as part of the grip. The two serve different purposes.
Do all pocket knives have a lock?
No. Slipjoint knives use spring resistance without locking the blade open. Friction folders can be simpler still. Read the stated mechanism rather than assuming a folding blade locks.
Do all pocket knives have a pocket clip?
No. Many modern EDC folders use a clip, while traditional knives may ride loose in a pocket or in a belt sheath. Clip position and reversibility also vary by model.
Bottom line
Pocket knife anatomy is practical vocabulary, not trivia. The blade and edge explain cutting, the pivot and opening parts explain movement, the lock or backspring explains blade control, and the handle and clip explain grip and carry. Learn those systems and you can compare knives on function instead of chasing isolated features.
